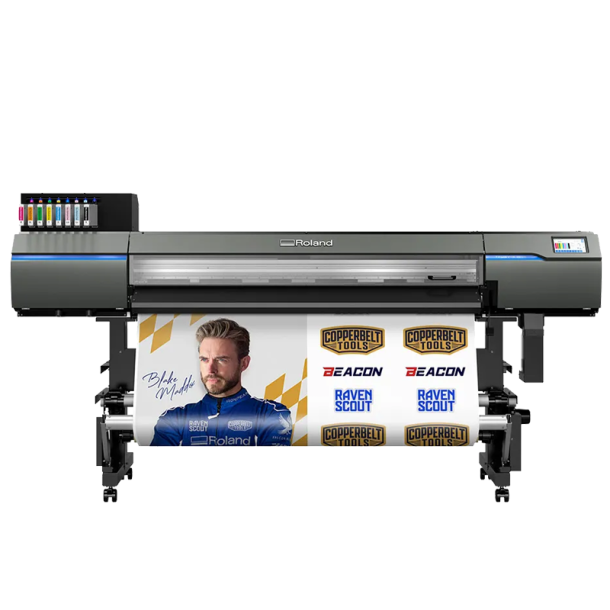

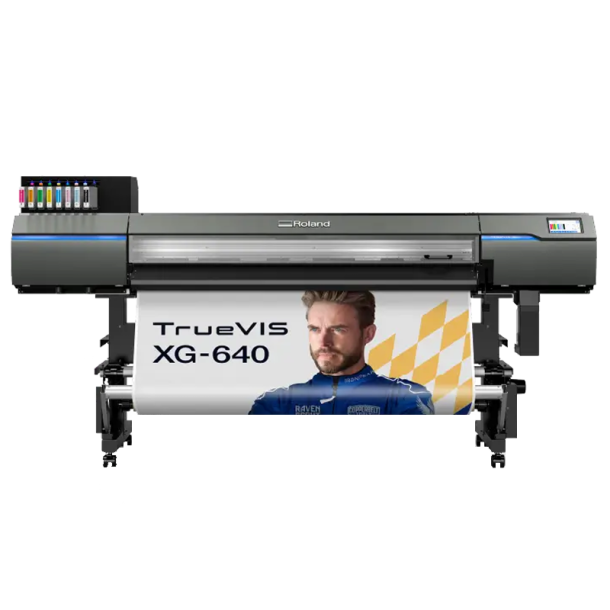

Roland TrueVIS XG-640 Large-Format Eco-Solvent Printer/Cutter
164.250,00 DKK
-
Beskrivelse
TrueVIS XG-640 NEW Large-Format Eco-Solvent Printer/Cutter
The next-generation XG-640 combines impressive print speed and precision contour cutting with stunning image quality that only a TrueVIS device can deliver. Get ready to experience a whole new level of print-and-cut productivity, versatility, and reliability.
- Roland DG’s most productive integrated printer/cutter to date – nearly twice as fast as the VG3-640.
- Advanced dual staggered printheads allow for top print speeds of up to 15.2 m2/h (8-colour mode).
- Exceptional vibrancy with new TR3 eco-solvent inks, available in dual CMYK or expanded gamut 8-colour configurations including Orange, Green, and White options.
- Enhanced usability with a 7-inch touch panel, automatic media gap adjustment, and other cutting-edge features designed for ease of use.
- TrueVIS XG-640, when configured in a 4-color (Double CMYK) setup, is designed for high-speed production, reaching speeds of up to 22.5 m²/h (approximately 242 sqft/hr)
Highlighted Features
COLOUR LCD SCREEN FOR QUICK SETUP AND MONITORING
The XG-640’s built-in 7-inch colour LCD touchscreen control panel provides quick, intuitive access to important printer functions and information. With the touch of a button, you can get an update on remaining ink levels, printer status, print time, and more.
AUTOMATIC MEDIA TAKE-UP SYSTEM
Longer, unattended print runs are simple thanks to the XG-640’s automatic media take-up system. Simply move the end of the media to the position of the tube on the take-up unit using the control panel and secure it in place.
ADD PERFORATIONS FOR QUICK AND EASY SEPARATION
The XG-640’s new perforated sheet cut function makes it easy to add perforations for high-volume print jobs. This feature eliminates cutting tools and reduces post-processing work, saving space and minimising the risk of output damage.
Pushing the Limits of Performance
Unmatched Productivity & Precision
Two staggered printheads eject finer ink droplets at higher densities for high-resolution output with fewer passes.
Print & Cut Precision
Industry-leading technology with automated pinch rollers for seamless workflow and maximum productivity.
TrueVIS Quality Prints
Unmatched vibrancy thanks to newly designed printheads and True Rich Color print settings.
Ultra-Wide Colour Gamut
New TR3 inks include Orange and Green for unparalleled colour accuracy and vibrancy.
Versatile Applications
Perfect for signage, vehicle wraps, banners, stickers, floor and window graphics, backlit displays, wallpaper, posters, and more.
Smart Automation
Streamline production with automatic media gap adjustment, automatic media settings and other advanced features.
XG-640 Printing method Piezo ink-jet method Media Width 335 to 1,625 mm Thickness Max. 1.0 mm with liner, for printing
Max. 0.4 mm with liner and 0.22 mm without liner, for cuttingRoll outer diameter Max. 250 mm Roll weight Max. 45 kg Core diameter 76.2 mm or 50.8 mm Printing/cutting width (*1) Max. 1,600 mm Ink Type Eco-Solvent Ink (TR3) 500 ml cartridge (only white 220 ml) Colours Eight colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, and Green)
Seven colours (Cyan, Magenta, Yellow, Black, Orange, Green, and White (2 cartridges))
Four colours (Cyan, Magenta, Yellow, and Black)Printing resolution (dots per inch) Max. 1,800 dpi Cutting speed 10 to 300 mm/s Blade force (*2) 30 to 500 gf Blade Type Roland CAMM-1 series blade Offset 0.000 to 1.500 mm Software resolution (when cutting) 0.025 mm/step Media heating system (*3) Print heater set temperature: 30 to 45 °C
Dryer set temperature: 30 to 55 °CConnectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching) Power-saving function Automatic sleep feature Rated input 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A Power consumption During operation Approx. 1,180 W Sleep mode Approx. 50 W Acoustic noise level During operation 66 dB (A) or less During standby 56 dB (A) or less Dimensions (Width x Depth x Height) 2,886 mm × 748 mm × 1,415 mm Weight 196 kg Environment During operation (*4) Temperature: 20 to 32 °C, humidity: 35 to 80 % RH (no condensation) Not operating Temperature : 5 to 40 °C, humidity：20 to 80 % RH (no condensation) Included items Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. *1 The length of printing or cutting is subject to the limitations of the application software. *2 - 500 gf is the maximum instantaneous blade force.
- The blade force must be adjusted according to details such as the media thickness.
*3 - Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
- Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
*4 Operating environment（Use in an operating environment within this range.）
