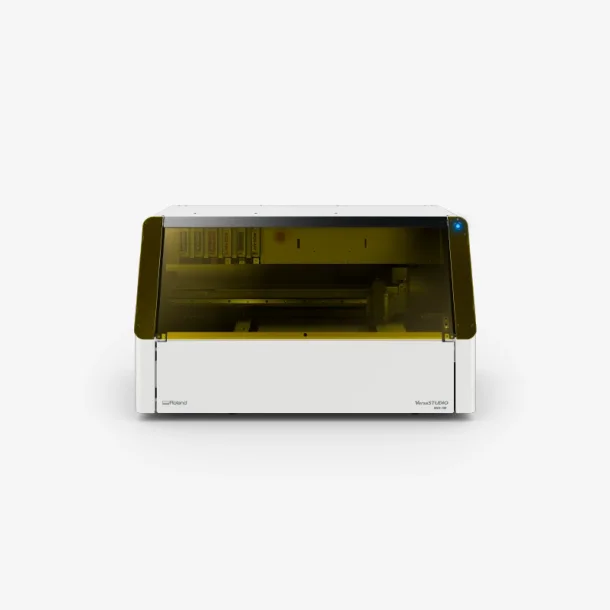

Roland VersaSTUDIO BD-12 Desktop UV Flatbed Printer
Extraordinary product customisation starts here. The new VersaSTUDIO BD series makes it quick and easy for anyone — even those with no prior experience — to print vibrant and detailed graphics on a wide range of objects.
Even better, the BD series fits on your desktop, making it ideal for use in home businesses, small offices, retail spaces and classroom settings. With a BD device, adding value and appeal to items like phone covers, cosmetic cases, fashion accessories, sports memorabilia, gifts, bottles and more is a breeze.
Welcome to a new world of creative possibilities.
|
|
BD-8
|
BD-12
|
|
Printing Method
|
Piezo ink-jet method
|
|
Attachable objects to be printed on
|
Width
|
Max. 240 mm
|
Max. 335 mm
|
|
Length
|
Max. 178 mm
|
Max. 240 mm
|
|
Thickness
|
Max. 102 mm
|
|
Weight
|
Max. 3 kg
|
Max. 5 kg
|
|
Maximum printing width/printing length
|
Max. 210 mm × 148 mm
|
Max. 305 mm × 210 mm
|
|
Ink
|
Type
|
ECO-UV (EUV5) 220 ml cartridge
|
|
Colors
|
Five colors (cyan, magenta, yellow, black, and white) and primer
|
|
Ink-curing unit
|
Built-in UV-LED lamp
|
|
Printing resolution (dots per inch)
|
Max. 1,440 dpi
|
|
Connectivity
|
Ethernet (100BASE-TX/1000BASE-T, automatic switching)
|
|
Power-saving function
|
Automatic sleep feature
|
|
Rated input
|
100-240 Va.c. 50 / 60 Hz 1.1A
|
100-240 Va.c. 50 / 60 Hz 1.2A
|
|
Power consumption
|
During operation
|
Approx. 90 W
|
Approx. 100 W
|
|
Sleep mode
|
Approx. 30 W
|
Approx. 40 W
|
|
Acoustic noise level
|
During operation
|
59 dB (A) or less
|
60 dB (A) or less
|
|
During standby
|
52 dB (A) or less
|
55 dB (A) or less
|
|
Dimensions (Width x Depth x Height)
|
768 mm × 586 mm × 580 mm
|
995 mm × 710 mm × 583 mm
|
|
Weight
|
61 kg
|
80 kg
|
|
Environment
|
During operation *1
|
Temperature: 20°C to 32°C (22 °C or higher recommended)
|
|
Humidity: 35% RH to 80% RH (no condensation)
|
|
Not operation
|
Temperature: 5°C to 40 °C
|
|
Humidity: 20% RH to 80% RH (no condensation)
|
|
Included Items
|
Power cord, Cleaning liquid, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc.
|
